CBOD4103 Mobile Programming OUM Assignment Question

QUESTION 1

1.1 – Extract from Assignment Question
Produce an interface as shown below. Choose an appropriate image as the main image on the interface. Make some space between the image and the toolbar. The sentence, "Welcome to Zoo Taiping" has the following attributes:
• font size: 20dp
• font color: #4286f4
• font style: bold
The animal's list should be made using a ListView element. When the name of the animal is clicked, a toast that displays the name of the animal will be displayed for a few seconds.

1.2 – Main UI Element

Main UI XML (activity_main.xml)

<?xml version="1.0" encoding="utf-8"?>
<AbsoluteLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">

<ImageView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_x="109dp"
android:layout_y="70dp"
android:src="@drawable/zootaipinglogo"
tools:layout_editor_absoluteX="86dp"
tools:layout_editor_absoluteY="69dp" />

<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_x="7dp"
android:layout_y="204dp"
android:text="Welcome to Zoo Taiping"
android:textAlignment="center"
android:textColor="#4286f4"
android:textSize="20dp"
android:textStyle="bold"
tools:layout_editor_absoluteX="0dp"
tools:layout_editor_absoluteY="228dp" />

<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_x="7dp"
android:layout_y="230dp"
android:text="Choose your favourite animal:"
android:textAlignment="center"
android:textColor="#b2b2b2"
android:textSize="18dp"
tools:layout_editor_absoluteX="0dp"
tools:layout_editor_absoluteY="255dp" />

<ListView
android:id="@+id/listView"
android:layout_width="wrap_content"
android:layout_height="449dp"
android:layout_x="1dp"
android:layout_y="262dp"

tools:layout_editor_absoluteX="-16dp"
tools:layout_editor_absoluteY="305dp" />

</AbsoluteLayout>

1.3 – Main JAVA class(es)

JAVA File (mainActivity.java)

package com.example.cbod4103_question1;

import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity {
ListView listView;
TextView textView;
String[] listItem;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);

listView=(ListView)findViewById(R.id.listView);
//textView=(TextView)findViewById(R.id.textView);
listItem = getResources().getStringArray(R.array.animallist);
final ArrayAdapter<String> adapter = new ArrayAdapter<String>(this,
android.R.layout.simple_list_item_1, android.R.id.text1, listItem);
listView.setAdapter(adapter);

listView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
@Override
public void onItemClick(AdapterView<?> adapterView, View view, int position, long l) {
// TODO Auto-generated method stub
String value=adapter.getItem(position);
Toast.makeText(getApplicationContext(),value,Toast.LENGTH_SHORT).show();

}});
}}

1.4 – Additional Included File(s)

String for ListView XML (AnimalList.xml)

<?xml version="1.0" encoding="utf-8"?>
<resources>
<string name="app_name">ListView</string>
<string-array name="animallist">
<item>Giraffe</item>
<item>Elephant</item>
<item>Tiger</item>
</string-array>
</resources>

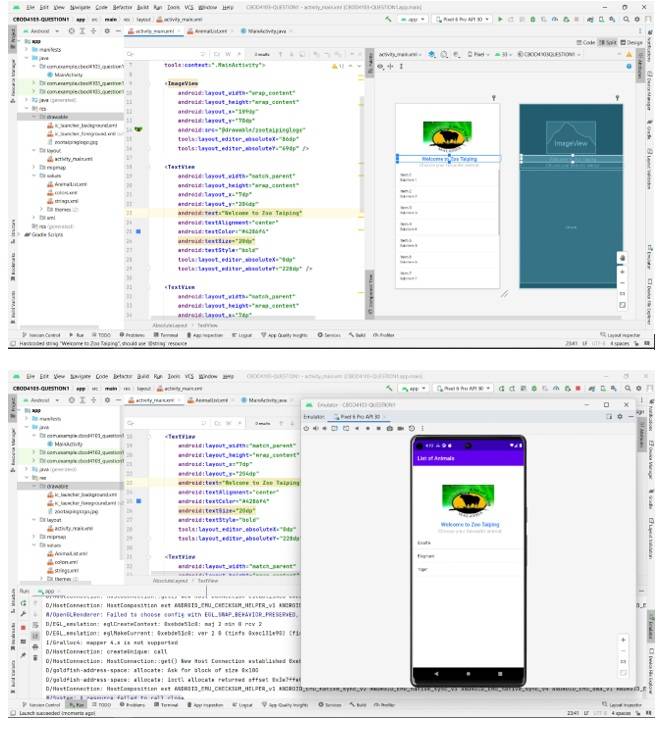

1.5 – Testing the Application

Build and run the application as per screenshots below.

1.6 – Additional Requirement from Assignment

a. Create a snapshot video by showing the programming created in the Android Studio

b. he video also must show the all the screen, components, and list view.

c. Your answer must also state the links to get the video.

Download APK Android APP

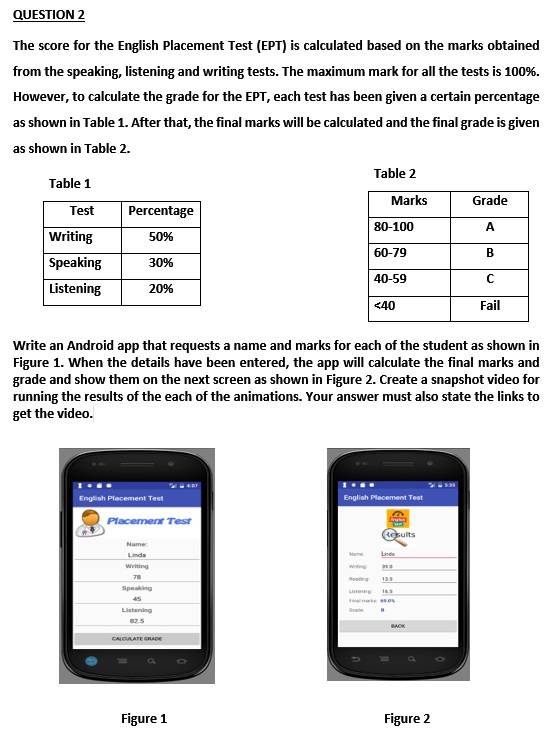

QUESTION 2

2.1 – Extract from Assignment Question

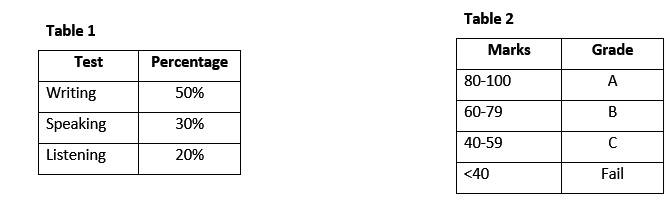

The score for the English Placement Test (EPT) is calculated based on the marks obtained from the speaking, listening, and writing tests. The maximum mark for all the tests is 100%. However, to calculate the grade for the EPT, each test has been given a certain percentage as shown in Table 1. After that, the final marks will be calculated, and the final grade is given as shown in Table 2.

Write an Android app that requests a name and marks for each of the student as shown in Figure 1. When the details have been entered, the app will calculate the final marks and grade and show them on the next screen as shown in Figure 2. Create a snapshot video for running the results of the each of the animations. Your answer must also state the links to get the video.

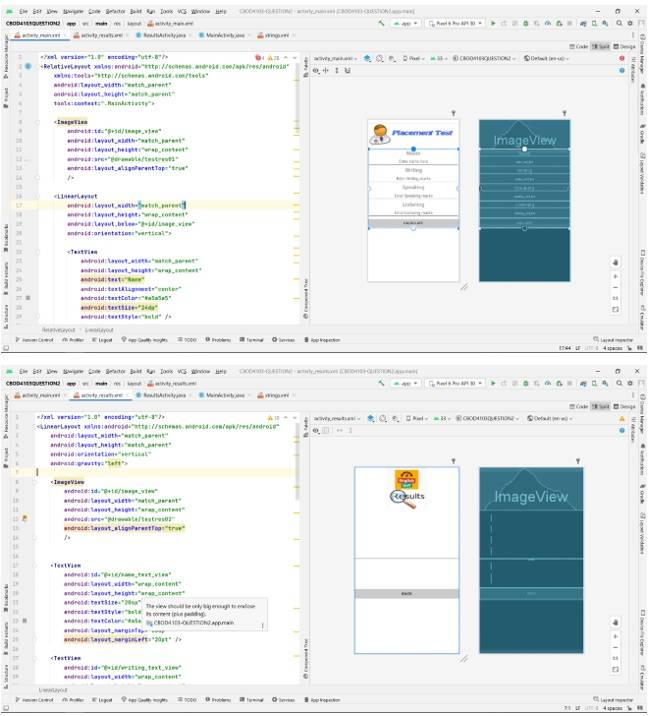

2.2 – Main & Result UI Element

Main Page (activity_main.xml)

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">

<ImageView
android:id="@+id/image_view"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:src="@drawable/testres01"
android:layout_alignParentTop="true"
/>

<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_below="@+id/image_view"
android:orientation="vertical">

<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="Name"
android:textAlignment="center"
android:textColor="#a5a5a5"
android:textSize="24dp"
android:textStyle="bold" />

<EditText
android:id="@+id/name_edit_text"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:textAlignment="center"
android:textColor="#a5a5a5"
android:hint="Enter name here" />

<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="Writing"
android:textAlignment="center"
android:textColor="#a5a5a5"
android:textSize="24dp"
android:textStyle="bold" />

<EditText
android:id="@+id/writing_edit_text"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:textAlignment="center"
android:textColor="#a5a5a5"
android:inputType="number"
android:hint="Enter Writing marks" />

<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="Speaking"
android:textAlignment="center"
android:textColor="#a5a5a5"
android:textSize="24dp"
android:textStyle="bold" />

<EditText
android:id="@+id/speaking_edit_text"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:textAlignment="center"
android:textColor="#a5a5a5"
android:inputType="number"
android:hint="Enter Speaking marks" />

<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="Listening"
android:textAlignment="center"
android:textColor="#a5a5a5"
android:textSize="24dp"
android:textStyle="bold" />

<EditText
android:id="@+id/listening_edit_text"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:textAlignment="center"
android:textColor="#a5a5a5"
android:inputType="number"
android:hint="Enter Listening marks" />

<Button
android:id="@+id/calculate_button"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:backgroundTint="#c9caca"
android:textColor="@color/black"
android:text="Calculate" />

</LinearLayout>

</RelativeLayout>

Result Page (activity_result.xml)

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:gravity="left">

<ImageView
android:id="@+id/image_view"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:src="@drawable/testres02"
android:layout_alignParentTop="true"
/>

<TextView
android:id="@+id/name_text_view"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textSize="20sp"
android:textStyle="bold"
android:textColor="#a5a5a5"
android:layout_marginTop="16dp"
android:layout_marginLeft="20pt" />

<TextView
android:id="@+id/writing_text_view"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textSize="20sp"
android:textStyle="bold"
android:textColor="#a5a5a5"
android:layout_marginTop="16dp"
android:layout_marginLeft="20pt" />

<TextView
android:id="@+id/speaking_text_view"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textSize="20sp"
android:textStyle="bold"
android:textColor="#a5a5a5"
android:layout_marginTop="16dp"
android:layout_marginLeft="20pt" />

<TextView
android:id="@+id/listening_text_view"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textSize="20sp"
android:textStyle="bold"
android:textColor="#a5a5a5"
android:layout_marginTop="16dp"
android:layout_marginLeft="20pt" />

<View
android:layout_width="match_parent"
android:layout_height="2dp"
android:layout_marginTop="16dp"
android:background="@android:color/darker_gray"/>

<TextView
android:id="@+id/total_marks_text_view"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textSize="20sp"
android:layout_marginTop="16dp"
android:textColor="#4153b6"
android:textStyle="bold"
android:layout_marginLeft="20pt" />

<TextView
android:id="@+id/grade_text_view"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textSize="28sp"
android:layout_marginTop="16dp"
android:textStyle="bold"
android:layout_marginLeft="20pt" />

<Button
android:id="@+id/back_button"
android:layout_marginTop="16dp"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:backgroundTint="#c9caca"
android:textColor="@color/black"
android:text="Back"
/>
</LinearLayout>

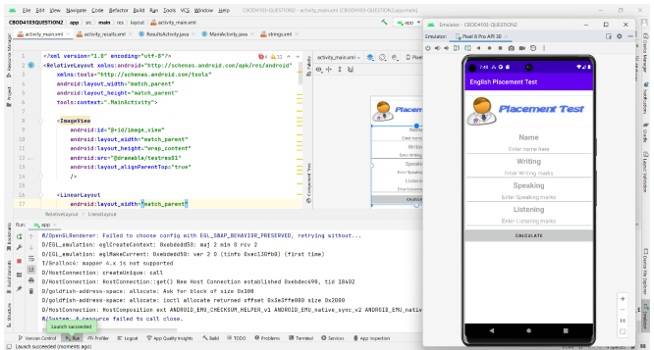

2.3 – Main & Result JAVA class(es)

Main Activity (MainActivity.java)

package com.example.cbod4103_question2;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.ImageView;
import android.widget.Toast;

import androidx.appcompat.app.AppCompatActivity;

import com.example.cbod4103_question2.R;
import com.example.cbod4103_question2.ResultsActivity;

public class MainActivity extends AppCompatActivity {

private EditText mNameEditText, mWritingEditText, mSpeakingEditText, mListeningEditText;

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);

mNameEditText = findViewById(R.id.name_edit_text);
mWritingEditText = findViewById(R.id.writing_edit_text);
mSpeakingEditText = findViewById(R.id.speaking_edit_text);
mListeningEditText = findViewById(R.id.listening_edit_text);

Button mCalculateButton = findViewById(R.id.calculate_button);
mCalculateButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
String name = mNameEditText.getText().toString();
String tempWrite = mWritingEditText.getText().toString();
String tempSpeaking = mSpeakingEditText.getText().toString();
String tempListenening = mListeningEditText.getText().toString();

double writingMarks = Double.parseDouble(mWritingEditText.getText().toString());
double speakingMarks = Double.parseDouble(mSpeakingEditText.getText().toString());
double listeningMarks = Double.parseDouble(mListeningEditText.getText().toString());

if (name.isEmpty() || tempWrite.isEmpty() || tempSpeaking.isEmpty() || tempListenening.isEmpty()) {
Toast.makeText(MainActivity.this, "Please fill in all fields", Toast.LENGTH_SHORT).show();
} else {

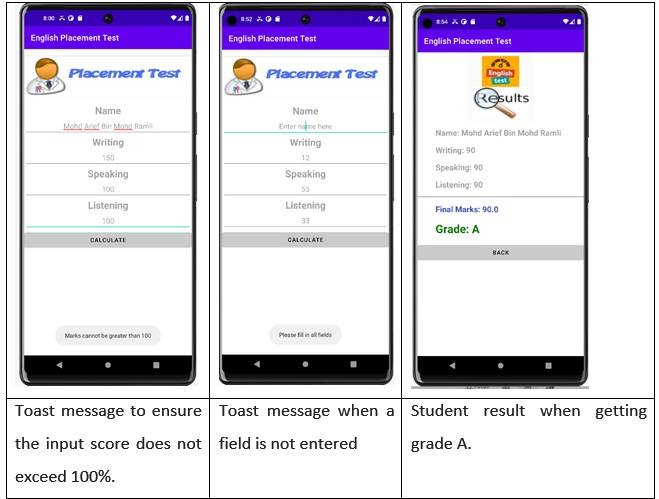

// Check if any marks entered are greater than 100
if (writingMarks > 100 || speakingMarks > 100 || listeningMarks > 100) {
Toast.makeText(MainActivity.this, "Marks cannot be greater than 100", Toast.LENGTH_SHORT).show();
return;
}
}
double totalMarks = calculateTotalMarks(writingMarks, speakingMarks, listeningMarks);
String grade = calculateGrade(totalMarks);

Intent intent = new Intent(MainActivity.this, ResultsActivity.class);
intent.putExtra("name", name);
intent.putExtra("tempWrite", tempWrite);
intent.putExtra("tempSpeaking", tempSpeaking);
intent.putExtra("tempListenening", tempListenening);
intent.putExtra("total_marks", totalMarks);
intent.putExtra("grade", grade);
startActivity(intent);
}
});
}

private double calculateTotalMarks(double writingMarks, double speakingMarks, double listeningMarks) {
// Maximum score for all tests is 100%
// Therefore apply weightage of 0.5, 0.3 and 0.2 forr the exam categories
double total = (writingMarks * 0.5) + (speakingMarks * 0.3) + (listeningMarks * 0.2);
return total;
}

private String calculateGrade(double totalMarks) {
if (totalMarks >= 80) {
return "A";
} else if (totalMarks >= 60 && totalMarks <= 79) {
return "B";
} else if (totalMarks >= 40 && totalMarks <= 59) {
return "C";
} else {
return "F";
}
}
}

Result Activity (ResultActivity.java)

package com.example.cbod4103_question2;

import android.content.Intent;
import android.graphics.Color;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;

import androidx.appcompat.app.AppCompatActivity;

public class ResultsActivity extends AppCompatActivity {

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_results);

Button backButton = findViewById(R.id.back_button);
backButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
finish(); // close the current activity and go back to the previous one
}
});

Intent intent = getIntent();
String name = intent.getStringExtra("name");

String tempWrite = intent.getStringExtra("tempWrite");
String tempSpeaking = intent.getStringExtra("tempSpeaking");
String tempListenening = intent.getStringExtra("tempListenening");

double totalMarks = intent.getDoubleExtra("total_marks", 0);
String grade = intent.getStringExtra("grade");

TextView nameTextView = findViewById(R.id.name_text_view);
nameTextView.setText("Name: " + name);

TextView writingTextView = findViewById(R.id.writing_text_view);
writingTextView.setText("Writing: " + tempWrite);

TextView speakingTextView = findViewById(R.id.speaking_text_view);
speakingTextView.setText("Speaking: " + tempSpeaking);

TextView listeningTextView = findViewById(R.id.listening_text_view);
listeningTextView.setText("Listening: " + tempListenening);

TextView totalMarksTextView = findViewById(R.id.total_marks_text_view);
totalMarksTextView.setText("Final Marks: " + totalMarks);

TextView gradeTextView = findViewById(R.id.grade_text_view);
gradeTextView.setText("Grade: " + grade);

if (grade.equals ("A")) {
gradeTextView.setTextColor(Color.parseColor("#0d7802"));
} else if (grade.equals ("B")) {
gradeTextView.setTextColor(Color.parseColor("#ff9601"));
} else if (grade.equals ("C")) {
gradeTextView.setTextColor(Color.parseColor("#ff4301"));
} else {
gradeTextView.setTextColor(Color.parseColor("#ff0000"));
}}
}

2.4 – Additional Included File(s)

String XML (strings.xml)

<resources>
<string name="app_name">English Placement Test</string>
</resources>

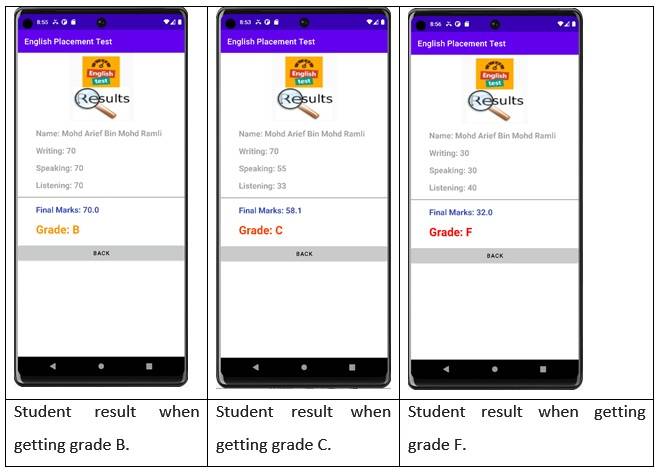

2.5 – Testing the Application

Build and run the application as per screenshots below.

2.6 – Additional Requirement from Assignment

a. Create a snapshot video by showing the programming created in the Android Studio
b. The video also must show the all the screen, components, and list view.
c. Your answer must also state the links to get the video.

Download APK Android APP

List of References:

1. Budi Kurniawan. (2015). Android Application Development. First Edition. Open Brainy Sofftware Corp.
2. W3Schools (Ed.). (n.d.). Java Tutorial. Java tutorial. Retrieved March 10, 2023, from https://www.w3schools.com/java/

LEMON BLOG

CBOD4103 Mobile Programming OUM Assignment Question

Blog Calendar

Blog Categories

Blog Subscribe

MY TIKTOK VIDEO COLLECTIONS

ABOUT

QUICK ACCESS

SERVICES

CONTACT
